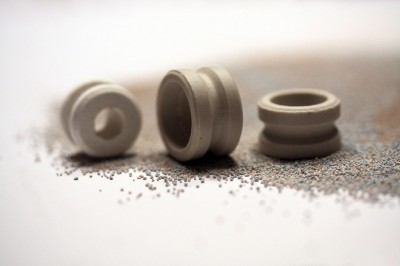

Ribbed and grooved ceramic bushings are commonly used to support wires and rods and as guides in high voltage electrical equipment.
Click on dimension header to list by size
This information is for design guidance only. Du-Co Ceramics Company will not guarantee this information as absolute values. Various geometries can affect properties.
| Part No. | Material | Rib OD | ID | Length |
|---|---|---|---|---|
| EM-2106 | Cordierite | 0.625 | 0.250 | 0.438 |
| EM-1437 | Cordierite | 0.875 | 0.408 | 0.437 |
| EM-2847 | Cordierite | 1.000 | 0.360 | 0.750 |
| EM-1430 | Cordierite | 0.625 | 0.296 | 0.450 |
| AM-4431 | L-3 Steatite | 0.762 | 0.203 | 0.444 |
| AM-3764 | L-3 Steatite | 0.802 | 0.450 | 0.300 |
| AM-4828 | L-3 Steatite | 0.762 | 0.457 | 0.694 |
| AM-3036 | L-3 Steatite | 0.762 | 0.457 | 0.444 |
| AM-2968 | L-3 Steatite | 0.688 | 0.383 | 0.444 |
| AM-3034 | L-3 Steatite | 0.762 | 0.182 | 0.444 |
| EM-1443 | L-3 Steatite | 0.750 | 0.313 | 0.375 |
| AM-2980 | L-3 Steatite | 0.688 | 0.383 | 0.694 |
| AM-5121 | L-5 Steatite | 0.688 | 0.383 | 0.444 |
